The Maxphotonics MA1 Series is a compact, easy-to-use, and highly efficient handheld laser welding system that significantly improves welding speed, greatly reduces training time, and offers superior return on invest compared to traditional welding methods. The fiberlaser system is air-cooled and no external chiller is required.
from 28kg, 220Vac
Increased Productivity
Train in Hours
Compared to TIG welding
CE/FDA/ETL
Image courtesy of AK Industry GmbH
Image courtesy of AK Industry GmbH
| Traditional welding methods | Handheld laser welding | |
|---|---|---|
| Welding Speed | Average | Up to 4 times faster than TIG |
| Welding Quality | Highly dependent on user experience Welding seams can be rough, irregular and require rework and polishing | Consistent high-quality results. Beautiful and neat welding seams, deep molten pool, and high strength. No cleaning necessary. |
| Training & Learning Curve | Difficult to learn | Easy – Train in less than one hour. Proficiency in 1-2 weeks. |
| Heat affected zone | Large | Small |
| Material Distortion & Deformation | High | Very Low |
| Welding Seam Damage | Potential for Porosity, lack of consistency | Uniform melt pool and great consistency |
| Energy Consumption | High | Low up to 80% reduction in electricity costs |
| Consumables | High welding wire consumption | Precise wire consumptions supported by wired feeding system. |
Malesuada facilisi libero, nam eu. Quis pellentesque tortor a elementum ut blandit sed pellentesque arcu. Malesuada in faucibus risus velit diam. Non, massa ut a arcu, fermentum, vel interdum.
Role
Malesuada facilisi libero, nam eu. Quis pellentesque tortor a elementum ut blandit sed pellentesque arcu. Malesuada in faucibus risus velit diam. Non, massa ut a arcu, fermentum, vel interdum.
Role
With its cutting-edge features, the MA1 is remarkably easy to learn and operate. Equipped with a user-friendly 7" LED touch screen and an intelligent operating system supporting multiple languages, this system simplifies the welding process like never before.
Say goodbye to expensive training programs and hello to immediate productivity. The MA1 empowers seasoned as well as novice welders to produce high-quality and consistent welds, saving both time and money.

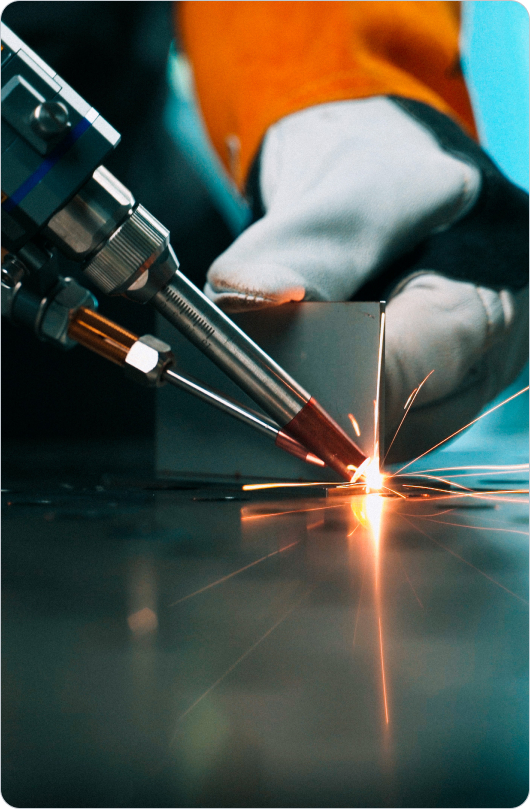

Maxphotonics presents the industry's lightest welding torch, weighing only 680g (1.5 pounds). Designed for comfort, it allows for extended use with less fatigue.
The torch features a built-in wobble function, controlled by a laser system, enabling up to 4.0mm (0.16") weld width for high-quality, smooth weld seams. For increased operational safety, the torch is equipped with a double-secured contact sensor that only allows operation when the trigger is in hand contact and in contact with the workpiece.
The MA1 series comes with a wire feeder module for deeper welding needs, supporting wire diameters of 1.0/1.2/1.6/0.8mm. It's suitable for various materials, including carbon steel, stainless steel, aluminum, and other alloys.
The MA1 series from Maxphotonics is a versatile tool for high-speed welding across a range of materials including Stainless Steel, Galvanized Steel, Mild Steel, Aluminum, Nickel Alloys, Titanium, and Copper, up to a thickness of 6.5mm. Its low heat input minimizes part distortion, ensuring the integrity of your materials.
The MA1 series produces strong, beautiful welding seams that require no further cleaning, saving time and enhancing the final product's appearance. With built-in factory presets for all materials and thicknesses, the MA1 series ensures efficient and high-quality welding every time.
The MA1 Series not only delivers superior performance but also significantly reduces electricity consumption compared to other welding technologies. Thanks to our single-mode technology, the MA1 Series increases energy density, enabling high-speed welding without the need for excessive power. This energy efficiency translates into substantial cost savings, making the MA1 Series a smart choice for both your operational efficiency and your bottom line.
-1.jpg?width=600&height=839&name=Desktop%20(1)-1.jpg)
As a global leader in fiber laser source manufacturing, Maxphotonics guarantees superior quality and performance by developing all key components of the MA1 Series Laser Welding System in-house.
The MA1 Series is unique in the market as the only handheld laser welding system that employs a 20µm fiber core. This innovative feature, enabled by our proprietary technology, produces a high energy density spot size.
The 20µm fiber core concentrates energy into a smaller area, resulting in faster throughput speed at the same power level. This technology facilitates deep weld penetration, with capabilities reaching as deep as 6.5mm at 1500W, enhancing the MA1 Series' versatility and broadening its range of applications.
Ready to explore the full potential of the Maxphotonics MA1 Series, the future of handheld laser welding systems? Our comprehensive brochure is packed with detailed specifications into our innovative product.
But we don't stop there. We understand that you might have specific questions or need personalized advice on how the MA1 Series can best serve your needs. That's why we invite you to get in touch with one of our solution partners. They're ready to provide you with expert guidance and answer any questions you might have.
